Einstein Graphic Services

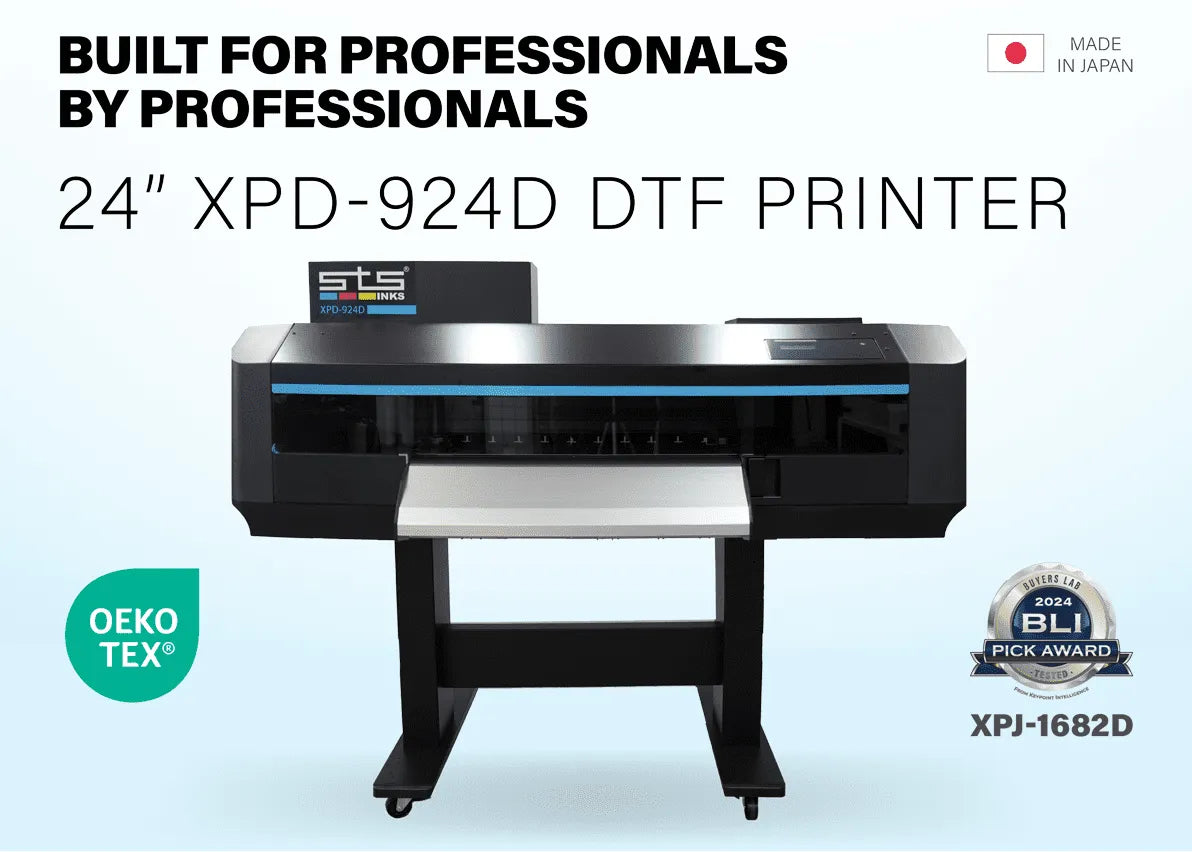

24” XPD – 924D DTF Printer

24” XPD – 924D DTF Printer

$20,987.00 USD
$24,995.00 USD $20,987.00 USD
Sale Sold out

*Equipment, tax, and freight charges shown are estimates only, and are likely to change. When an order is submitted, it is not a finalized order, and a Einstein Graphic Services representative will reach out to establish the final purchase price prior to charges being

The STS Inks XPD-924D 24-inch DTF Printer boasts staggered dual AccuFine HD printheads for enhanced productivity, delivering high-quality transfers with smooth gradations and fine lines.

As the fastest dual-head printer on the market, it maintains true quality and consistency in every print. Our new XPD-924 features a built-in white ink circulation system that operates continuously, ensuring a seamless flow of ink.

This advanced feature reduces the likelihood and the need for maintenance, resulting in increased uptime and greater profitability for our customers!

The XPD-924D is packed with standard features such as:

  • Dropmaster 2 (Automatic Bi-Directional alignments),
  • Feed Master (Automatic Feed Roller Adjustment),
  • i-screen Print Effects- Multiple Waveforms that Mitigate Banding.
  • Media Tracker (Roll Remainder Tracking)
  • White Ink Circulation
  • Auto Cleaning and Maintenance

The XPD-924D includes Digital Factory RIP 11 Software, bundled with the printer for the ultimate balance of speed and quality. Pre-installed high quality color profiles at various resolutions to match our ink and film make this printer instantly ready for production.

About 64" DTF printer
XPD-924D printer features include
  • High-precision Heavyduty Aluminum Rail System for High Quality and Stable Printing.
  • Ease-of-use Side Mounted LAN and Power Plugs and LED Operation Panel.
  • New AccuFine HD Printheads Provide Faster Speeds with Exceptional Quality.
  • Built-in Sensors for Operator-Driven Automatic Bi-directional and Page feed Alignments.
  • Improved front Dryer system for 20% Faster Ink Dry Times.
  • Updated Media Angles and Media Feeding Mechanism to Allow for Easy Loading and Page Feed for DTF Film.
  • Internal LED lighting for Unobstructed Print.
  • Viewing and Maintenance Access.
  • Includes the Mutoh Status Monitor (MSM) Companion Software for Convenience and Efficiency:
    Records Print History, Job Cost Analysis, Remote Access.
  • Complete turnkey solutions that produce exceptional transfers that are super soft and colorful with excellent elasticity, and washability which creates the industry’s finest hand feel transfers.

XPD 924D dimensions
XPD 924D

XPD-924D Specifications

Printing method Drop-on-demand Micro Piezo Inkjet Technology
Print head height Four-level adjustment:
1.5mm, 2.0mm, 2.5mm, 4.0mm
Print head 2 (staggered)
Max print resolution 1200x1200dpi
(1200/900/600/300 dpi print modes)
Media width 600 cm 25″
Media capacity ø 5.9” dia / 2” & 3”
cores / Roll media 66lbs or less
Max media thickness Low 1 0.3mm, Low2 0.8mm, Mid. 1.3mm, High 2.8mm
Max printable width 24.5 in
Max print speed 17.5 sqm/hr – 190 sqft/hr
RIP software CADlink™ Digital Factory 11
Interface Gigabit-Ethernet (1000BASE-T )
Power Requirements AC 100-120V± 10%, 50/60Hz ± 1Hz
Printing Environment Temperature: 68-77°F/ 20-26°
C Humidity: 40-55%
Power Consumption Main: Operation status 700W or less Standby: 30W or less
Dimensions (WxDxH) Printer including stand: 70.68” X 35.23” X 56.48” cover closed
Weight Body: 310lb | Stand: 70.54lb /
Body: 140kg | Stand: 32kg
Ink Type DTF
Ink Set  4 COLOR (CMYK) | WHITE
Volume 500ml Direct to Film Ink Catridge XPD
No. of slots 6
Resolution
900×600		 Pass 3
Printing Speed [m2/h] 17.5
Printing Speed [f2/h] 190.0
Printing Speed [lm/h] 29.0
Printing Speed [lft/h] 96.0
Time for 328 lft Roll [h] 3.5
Resolution
600×1200		 Pass 4
Printing Speed [m2/h] 13.5
Printing Speed [f2/h] 145.0
Printing Speed [lm/h] 22.5
Printing Speed [lft/h] 74.0
Time for 328 lft Roll [h] 4.5
Resolution
900×1200		 Pass 6
Printing Speed [m2/h] 9.0
Printing Speed [f2/h] 97.0
Printing Speed [lm/h] 15.0
Printing Speed [lft/h] 50.0
Time for 328 lft Roll [h] 6.7
Resolution
1200X1200		 Pass 8
Printing Speed [m2/h] 7.0
Printing Speed [f2/h] 75.0
Printing Speed [lm/h] 11.0
Printing Speed [lft/h] 37.0
Time for 328 lft Roll [h] 9.0
