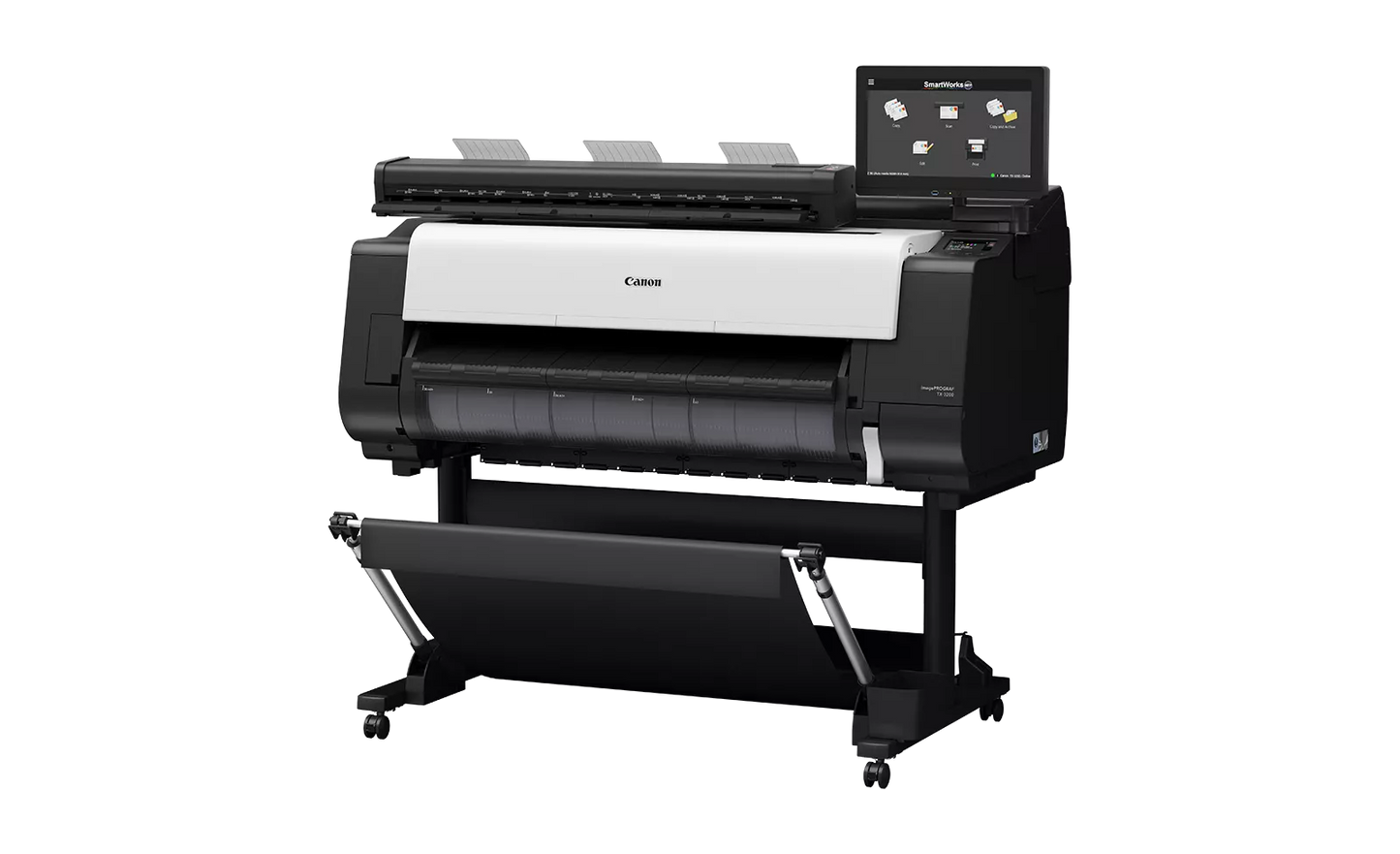

Canon imagePROGRAF TX-3200 MFP Z36

Canon imagePROGRAF TX-3200 MFP Z36

$12,253.00 USD
$12,253.00 USD
Sale Sold out
Shipping calculated at checkout.

Canon imagePROGRAF TX-3200 MFP Z36

Key Features
  • 36″ Printer with 36″ Scanner
  • Up to 3.3 D-size pages per min*
  • Scans up to 13” per second for monochrome prints
  • Optional Multifunction Roll Unit
  • EPEAT Gold and Energy STAR registered

* 3.3 ANSI D prints/minute speed measured after first print in Fast Q5 mode, using plain paper. Print speed is based on internal testing. Print speed may vary depending on the number of copies selected, as well as on the settings for size, type, and orientation of paper.

In the box

TX-3200 Printer:

Includes Main Unit, TX Stacker or Multi-Positional Catch Basket, Stand, (1) Printhead, Starter Ink Tank Set, (1) Maintenance Cartridge (Installed), 2” Roll Holder with 3” Adapters, Installation Guide, User Registration Card, Printer Warranty Statement, Printhead Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, iWR Service Terms Leaflet, Safety and Environmental Information, USB port (High Speed), Power Cable & Screw, Gigabit Ethernet (Built-In)

Z36 Scanner:

Z36 Scanner with Power Cord, USB 3.0 Cable (2 m), 15.6” System Controller, 3:1 Trident Power Cord, Power Supply, Mount for Printer and System Controller, (2) Paper Edge Guides, (3) Document Return Guides, Calibration Target, Assembly and Startup Guide

Categories: , , , , , ,

Description

Technical Specifications

Main Unit Specs

Printer Type
5-Color 36-inch Printer
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy(1)
±0.1% or Less
Minimum Line Weight(2)
0.02 m
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Ink Type
Pigment:Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Tank
Shipped with Printer:
M: PFI-111(160ml)
BK/C/Y: PFI-110(160ml)
MBK: PFI-310(330ml)
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Ink Supply Method
Tubing System with Sub Tanks for Continuous Ink Supply
Printer Controller
L-COA PRO
Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows
Ink Droplet Size
5 picoliter
Printer RAM
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet:6″- 36″ (152 mm – 917 mm)
Roll Feed:6″ – 36″ (152 mm – 917 mm)
Printable Margins
Roll Feed:All Sides: 0.12″ (3 mm) or 0″ for Borderless
Maximum Print Length (Single Page)(3)
Roll Feed: 59′ (18 m)
Cut Sheet:63″ (1.6 m)
Borderless Printing Widths (Roll Media Only)
Custom roll width 6” – 36” with Micro Margin Technology
Media Cutter
Automatic horizontal rotary cutter
Media Thickness
0.07 – 0.8 mm
Media Core Sizes
2” with 3” Core Adapters Included
Maximum Roll Outer Diameter
6.7″ (170 mm)
Media Output Options
TX Stacker or Multipositional Catch Basket
Media Method
Roll Feed:One Roll, Front-loading, Front Output
Front Loading Manual Feed:One Roll, Front Output
Printing Software Utilities
Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox
Operating System
W11 Enterprise LTSC (x64)
Print Languages
SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Interface
USB B Port
Type:Built-in (Hi-speed USB)
Mode:Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)USB A Port:Direct USB Thumb Drive Printing



Gigabit Ethernet
Type:Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol:SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN
Standard:IEEE802.11n/IEEE802.11g/IEEE802.11b4
Security:WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

Acoustic Noise
Operation:51 dB (A) or Less
Standby:35 dB (A) or Less
Acoustic Power:Approx 6.9Bels
Power Supply
AC 100 – 240 V (50 – 60 Hz)
Power Consumption
Maximum:Approx. 115 W
Standby:Approx. 2.0 W
Power Off:Approx. 0.3 W
Certifications
Electrical Safety Regulations
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide) & EPEAT Gold
Operational Environment
Temperature:59° F – 86° F (15° C – 30° C)
Relative Humidity:10 – 80% (No Condensation)
Printer Dimensions (W x D x H) and Weight
With Basket Open
54.7″ x 38.7″ x 46″; 231.5 lb (Approx)
With Basket Closed
54.7″ x 30.2″ x 46″; 231.5 lb (Approx)
With Stacker Opened
54.7″ x 46.8″ x 46″; 258 lb (Approx)
With Stacker Closed
54.7″ x 44.2″ x 46″; 258 lb (Approx)
Package Dimensions (W x D x H) and Weight
Printer (Main Unit with Stand and Pallet)
64″ x 35.6″ x 40.7″; 337 lb (Approx.)
Basket
56″ x 21.9″ x 8.4″; 20 lb (Approx.)
Stacker
49.2″ x 35.7″ x 11.5″; 60 lb (Approx.)
Roll Unit
60″ x 22.1″ x 18.1″; 68.3 lb (Approx.)
Options
• Multifunction Roll System (RU-32)
• 2″/3″ Roll Holder Set (RH2-34)
User-Replaceable Items
• Ink Tank (PFI-110/111, PFI-310/311, PFI-710/711)
• Print Head (PF-06)
• Maintenance Cartridge (MC-30)
• Cutter Blade (CT-07)
Scan Speed(5)
• 24-bit Color @ 200 dpi: Up to 3” per second
• 8-bit Grayscale and Monochrome @ 200 dpi: Up to 13” per second
Copy Speed
24-bit Color @ 200 dpi: Up to 6” per second
Color Space
sRGB
Maximum Resolution
1200 dpi (Optical)
Scan Accuracy(6)
±0.1% : ±1 pixel
Maximum Scan Width/Maximum Media Width
36”/38”
Maximum Scan Length
164’ (PDF); 315” (JPEG); 598” (TIFF)
Maximum Media Thickness
0.003” – 0.04” (0.07 mm – 1.0 mm)
Digital Imaging Technology
Contact Image Sensor (CIS) Technology
(SingleSensor Assembly)
• 24-bit RGB
• 16-bit grayscale image capture
• Panchromatic monochrome and black and white
• Bi-directional extra long-life LED light system for
optimum object illumination and instant-on scanning
capability
Included Software
SmartWorks MFP Scan-to-Copy/File/Email with Image Viewer; supports TIFF, JPEG, and PDF
Scanner Interface Kit
3x USB 3.2 and 1x USB 2.0 rear and 1x USB 3.2 front, all type A
Operating Environments
10°C – 35°C, 10 – 90% RH, Non-condensing
External Power Supply
100 – 240 VAC Autosensing +/- 10%, 50 – 60 Hz
Scanner Power Consumption
• Sleep: 0.2 W
• Idle: 12.4 W
• Scanning Color/Grayscale at 200 dpi: 22.7 W/23.3 W
• Controller: 35 W
Compliances
ENERGY STAR®, CB(62368-1), CE, FCC(EMC), Cul/UL, CCC, NOM-019, EAC, C-TICK, VCCI, BIS, EMC +LOA, UL AR, WEEE, REACH, RoHS, EU – Tier 3 of Lot 6
MFP Package Dimensions (W x D x H) and Weight
(With Stand, Pallet, and Scanner)
50″ x 17″ x 19.5″, 75 lb. (Approx.)
Disclaimers
  1. Line accuracy repeatability is guaranteed after a user performs the necessary adjustment and under the same environmental conditions. Applies to media for line drawing (Plain Paper, Coated Paper, CAD Translucent Matte Film, and CAD Tracing Paper) only.
  2. Theoretical value based on data resolution.
  3. The maximum printable length varies depending on the application, OS, and RIP used.
  4. Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
  5. The scan rate is proportional across the full range of resolutions supported by the scanner. Actual scan times will depend on the host system performance. Quoted top speeds may be limited by the effective bandwidth of the USB 2 and is not guaranteed for all media types.
  6. The quoted scan accuracy may vary depending on the operating environment and the thickness of the media.
