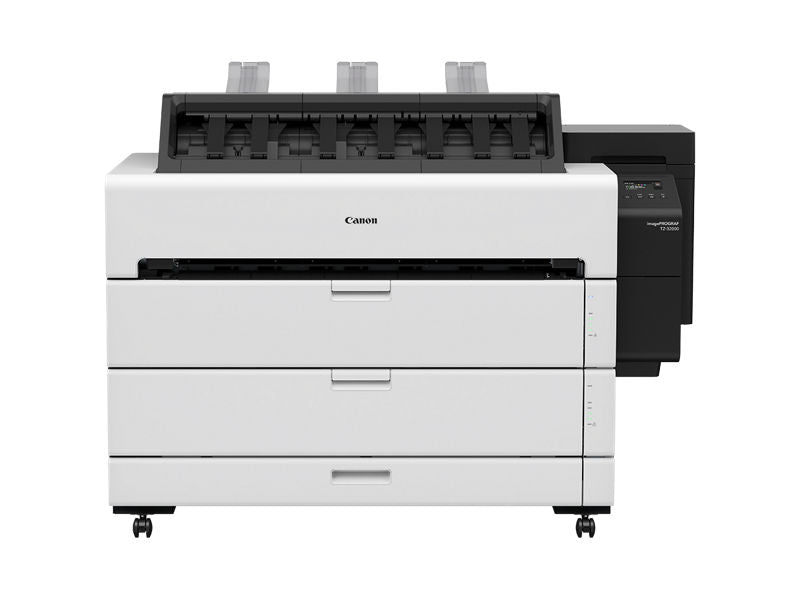

Canon ImagePROGRAF TZ-32000

Canon ImagePROGRAF TZ-32000

$14,355.00 USD
$14,355.00 USD
Sale Sold out
Shipping calculated at checkout.

Canon ImagePROGRAF TZ-32000 Print Only

  • 36″ Large Format printer
  • Dual roll system with Hot Swap Media Capability
  • 5-Color LUCIA TD pigment based ink system NEW Magenta that POPS
  • Up to 4 D prints/minute
  • Up to 244 D prints/hour
  • Integrated 100-print capacity stacker
  • Intelligent media handling system that detects media type, width and length
Categories: , , , , , , Tags: , , , , , , ,

Description

Canon TZ-32000 Large Format Printer

NEW JUST ANNOUNCED $1500 REBATE TO BE THANKFUL FOR

A 5-color, 36-inch aqueous inkjet model built for high productivity and efficiency for the low-end LED and high-end inkjet production CAD, engineering, government, and other markets. The TZ-32000 achieves the fastest printing speed of any Canon imagePROGRAF printer to date at up to 4-D prints per minute.

Designed with many “Canon First” technologies such as twin carriage motors, an integrated top stacker that utilizes an airflow system, and a dual-roll media system with intelligent media handling, this printer is a powerful addition to Canon’s portfolio of large format printers.

Video Player



00:00

04:07


Technical Specifications

Main Unit Specs

Printer Type
5-Color 36-inch Printer
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy(1)
±0.1% or Less
Minimum Line Weight(2)
0.02 mm
Number of Nozzles
Matte Black:5,120 Nozzles
Other Colors:2,560 Nozzles per Color
Droplet Size
5 Picoliter
Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows
Ink Tank
Shipped with Printer:330ml MBK; 160ml BK, C, Y, M
Replacement:MBK/BK/C/Y:PFI-340(330ml)/PFI-740(700ml)
M:PFI-341(330ml)/PFI-741(700ml)
Ink Supply Method
Tubing System with Sub-tanks for Continuous Ink Supply
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Printer Controller
L-COA PRO
Printer RAM
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500GB (Encrypted)
Media Feed
Roll Feed:Two Rolls, Front Loading
Cut Sheet:Front Loading
Media Width
Roll Feed:8” – 36” (203.2 mm – 917 mm)
Cut Sheet:8” – 36” (203.2 mm – 917 mm)
Printable Margins
Roll Feed:All Sides: 0.12″ (3 mm) or 0″ for Borderless
Maximum Print Length (Single Page)(3)
Roll Feed:59′ (18 m)
Cut Sheet:24″ (610 mm)
Borderless Printing Widths (Roll Media Only)
Custom roll width 8” – 36” with micro margin technology
Media Cutter
Automatic horizontal rotary cutter
Media Thickness
0.07 mm – 0.8 mm
Media Core Size
2″ with 3″ Core Adapters Included
Maximum Roll Outer Diameter
6.9″ or less
Media Output
Front Output:Basket
Top Output:Stacker
Operating System
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7- MacOS 14
Printer Language
SGRaster, HP-GL/2, HP RTL, PDF, JPEG, CALS G4
Interface
USB B Port
Type:Built-in (Hi-speed USB)
Mode:Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)USB A Port:Direct USB Thumb Drive Printing



Gigabit Ethernet
Type:Built-in
Standard:IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol:SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wireless LAN
Standard:IEEE802.11n/IEEE802.11g/IEEE802.11b(4)
Security:WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

Power Supply
AC 100 – 240 V (50 – 60 Hz)
Power Consumption
Maximum:Approx. 111 W
Standby:Approx. 1.6 W
Power Off:Approx. 0.1 W
Certifications
International ENERGY STAR® Program (WW), TUV, CB, EPEAT Gold®
Operational Environment
Temperature:59° F – 86° F (15° C – 30° C)
Relative Humidity:10 – 80% (No Condensation)
Printer Dimensions
(W x D x H):60.9″ x 37.8″” x 46.8″
Weight:454.2 pounds (Approx.)
Package Dimensions
(W x D x H):67.1″ x 37.2″ x 54.1″
Weight:612.9 pounds (Approx.)
Options
  • 2″/3″ Roll Holder Set (RH2-34)

User-Replaceable Items

  • Ink Tank (MBK/BK/C/Y: PFI-340/PFI-740; M: PFI-341/PFI-741)
  • Print Head (PF-06)
  • Maintenance Cartridge (MC-30)
Disclaimers
  1. Line accuracy repeatability is guaranteed after a user performs the necessary adjustment and under the same environmental conditions. Applies to media for line drawing (Plain Paper, Coated Paper, CAD Translucent Matte Film, and CAD Tracing Paper) only.
  2. Theoretical value based on data resolution.
  3. The maximum printable length varies depending on the application, OS, and RIP used.
  4. Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
