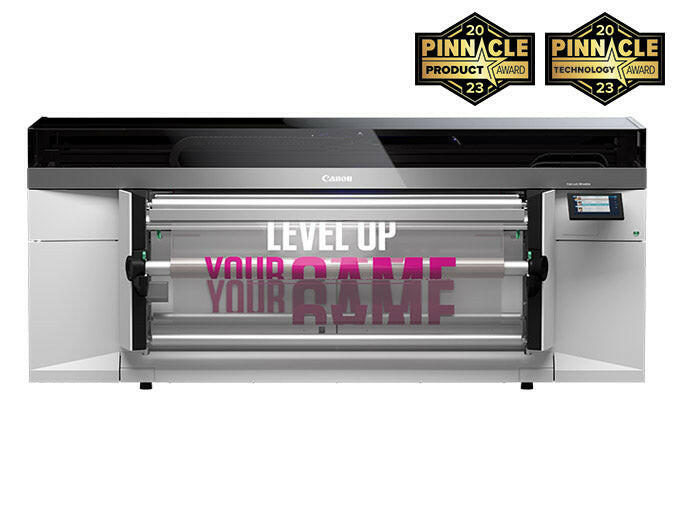

Canon Colorado M Series
Canon Colorado M Series
Couldn't load pickup availability
*Equipment, tax, and freight charges shown are estimates only, and are likely to change. When an order is submitted, it is not a finalized order, and a Einstein Graphic Services representative will reach out to establish the final purchase price prior to charges being processed.
White ink without worry
Use unique UVgel technology to print large-format jobs with white ink, with speeds equivalent up to 3 times faster than comparable technologies. Ensure high quality output with FLXfinish+ technology and enjoy hassle-free white ink printing with no maintenance or printhead treatment needed.
Low operating cost
Reduce labour costs with automated roll feeding, an easily refillable ink and an advanced highly automated new maintenance system. Save on running costs with reduced ink and energy usage and upgrade your speed even further, without the need for lengthy service visits.
Fully modular
Upgrade your printer as your business needs evolve. Benefit from infield upgradability, opt for white ink with just a service visit, print double-sided documents and (temporarily) boost print speed during busy times.
Premium application range
Print large-format graphics in matte, gloss or mixed matte/gloss. Create textured, transparent, coloured and reflective media, and produce a range of output including self-adhesive vinyl and banners. PRISMAguide XL supports the easy preparation of many multilayer print jobs such underflood, overflood, 3 or 5 layer print jobs.
Improved sustainability
Reduce energy consumption with the low-heat, energy-efficient LED curing system and instant-on operation. Print on environmentally-friendly materials and use up to 40% less ink with UVgel technology.
Consistent quality
Consistently excellent colour quality with precise, sharp dots, a wider colour gamut, strong saturation for dark colours and accurate skin tones. Several certifications guarantee print quality. Most importantly, the 3M™ MCS™ Warranty, Avery Dennison ICS Warranty and GREENGUARD Gold certification for safe indoor use in the most sensitive environments.
ALL PRINTER PRICES ARE for printers only. Installation Kit, Ink, Photo Paper, Filters, Delivery, Installation and Training are purchased separately. Additional Discounts/promotions not included in the pricing. Call or email for a formal quote!
Technical Specifications
|
Main Unit Specs |
||
|
Colorado M3 |
Colorado M5 |
|
| Printing | ||
| Printing Method | UVgel piezoelectric inkjet | UVgel piezoelectric inkjet |
| Printing Modes: Gloss | High Key: 1,195 ft2/hr Express: 840 ft2/hr Speed: 592 ft2/hr Production: 420 ft2/hr High Quality: 312 ft2/hr Premium: 237 ft2/hr Specialty: 215 ft2/hr |
High Key: 1,709 ft2/hr Express: 1,229 ft2/hr Speed: 861 ft2/hr Production: 610 ft2/hr High Quality: 427 ft2/hr Premium: 290 ft2/hr Specialty: 222 ft2/hr |
| Printing Modes: Matte** | Express: 388 ft2/hr Speed: 291 ft2/hr Production: 237 ft2/hr High Quality: 194 ft2/hr Specialty: 140 ft2/hr Backlit: 194 ft2/hr Backlit Density: 108 ft2/hr |
Express: 495 ft2/hr Speed: 409 ft2/hr Production: 333 ft2/hr High Quality: 290 ft2/hr Specialty: 215 ft2/hr Backlit: 215 ft2/hr Backlit Density: 108 ft2/hr |
| Printing Modes: Mixed Matte/Gloss** |
FLXfinish+: 75 ft2/hr | FLXfinish+: 75 ft2/hr |
| Printing Modes: Spot White 1 Layer** |
Express: 291 ft2/hr Speed: 237 ft2/hr Production: 194 ft2/hr High Quality: 140 ft2/hr Specialty: 129 ft2/hr |
Express: 388 ft2/hr Speed: 323 ft2/hr Production: 258 ft2/hr High Quality: 194 ft2/hr Specialty: 129 ft2/hr |
| Printing Modes: White Underflood/Overflood 2 Layers* |
Speed: 215 ft2/hr Production: 151 ft2/hr High Quality: 108 ft2/hr Specialty: 75 ft2/hr |
Speed: 215 ft2/hr Production: 151 ft2/hr High Quality: 108 ft2/hr Specialty: 75 ft2/hr |
| Printing Modes: White 3 Layers** |
High Quality: 75 ft2/hr Specialty: 54 ft2/hr |
High Quality: 75 ft2/hr Specialty: 54 ft2/hr |
| Printing Modes: White 5 Layers** |
High Quality: 43 ft2/hr Specialty: 32 ft2/hr |
High Quality: 43 ft2/hr Specialty: 32 ft2/hr |
| Print Resolution | Up to 1,800 dpi | Up to 1,800 dpi |
| Print Resolution | Canon UVgel 460 ink | Canon UVgel 460 ink |
| Ink Color | CMYK / CMYKW**** | CMYK / CMYKW**** |
| Ink Packaging | 1 x 700ml ink bottle Ink Reservoir per ink color: 1.8 liter Can Refill while printing |
1 x 700ml ink bottle 2 x 1 liter ink bottle Ink Reservoir per ink color: 2.1 liter Can Refill while printing |
| Printhead | 4 or 5* UVgel 425 Printheads High frequency drop-on-demand piezo-electric printhead PAINT (Piezo Acoustic Integrated Nozzle Technology) Automatic Maintenance Curing: UV LED |
4 or 5* UVgel 425 Printheads High frequency drop-on-demand piezo-electric printhead PAINT (Piezo Acoustic Integrated Nozzle Technology) Automatic Maintenance Curing: UV LED |
| Media |
Roll Width: Up to 64” (1,625 mm) Print Margin: 0.21” (5.3 mm)2 Roll Weight: Up to 110 lbs (50 kg) Roll Diameter: Up to 8.7” (220 mm) Media Thickness: Up to 0.03” (0.8 mm) |
Roll Width: Up to 64” (1,625 mm) Print Margin: 0.21” (5.3 mm)2 Roll Weight: Up to 110 lbs (50 kg) Roll Diameter: Up to 8.7” (220 mm) Media Thickness: Up to 0.03” (0.8 mm) |
| Media Input | 1 roll or optional 2nd roll** Print Side Out Media Print Side In / Double Sided Media** Magnetic Media Kit** |
1 roll or optional 2nd roll** Print Side Out Media Print Side In / Double Sided Media** Magnetic Media Kit** Jumbo Roll Interface** |
| UVgel Technology | Instant pinning** and dot gain control Low temperature curing Scratch resistance Easy lamination, smooth ink film High precision color consistency Odorless and instant dry prints |
Instant pinning and dot gain control Low temperature curing Scratch resistance Easy lamination, smooth ink film High precision color consistency Odorless and instant dry prints |
| Certifications |
Environmental and Safe Use: GREENGUARD Gold |
Environmental and Safe Use: GREENGUARD Gold |
| Software | Supported Rips: ONYX Graphics, Caldera, EFI, PrintFactory, ColorGATE, ErgoSoft, Shiraz, AGFA, SAI PRISMA Applications: PRISMAguide XL PRISMA remote app PRISMAservice |
Supported Rips: ONYX Graphics, Caldera, EFI, PrintFactory, ColorGATE, ErgoSoft, Shiraz, AGFA, SAI PRISMA Applications: PRISMAguide XL PRISMA remote app PRISMAservice |
| External Modules | None | Jumbo Roll Loader X/Y Cutter Rewinder Jumbo Roll Rewinder |
| Interface | Ethernet (100/1,000 Mbit/s) | Ethernet (100/1,000 Mbit/s) |
| Dimensions | Printer W x D x H 3,020 x 1,095 x 1,300 mm | Printer W x D x H 3,020 x 1,095 x 1,300 mm |
| Weight | 750 kg | 750 kg |
| Working Environment | ||
| Operation Printer | 18 - 30°C (recommended 20 – 27°C), 20 - 80% RH (no condensation) | 18 - 30°C (recommended 20 – 27°C), 20 - 80% RH (no condensation) |
| Power | 0 W - Off, 250 W - Standby, 1.6 kW - Ready, 2.3 kW - Printing | 0 W - Off, 250 W - Standby, 1.6 kW - Ready, 2.3 kW - Printing |
| Consumption | 2 inputs, each 200-240V +/- 10%, 50/60 Hz, 16/6 A. | 2 inputs, each 200-240V +/- 10%, 50/60 Hz, 16/6 A. |
| Source | Printer is declared under Radio Equipment Directive (RED)- 2014/53/EU | Printer is declared under Radio Equipment Directive (RED)- 2014/53/EU |
| Regulatory Certification | ||
| Declaration of conformity | Compliant with EN62479, EN301 489-1, EN301 489-3, EN300-330 FCC Part 15 and RSS-210 certified (module) |
Compliant with EN62479, EN301 489-1, EN301 489-3, EN300-330 FCC Part 15 and RSS-210 certified (module) |
| Radio | IEC/EN/UL/CSA 62368-1 compliant Applicable marks: CE, TÜV-GS, C-UL-US, RCM | IEC/EN/UL/CSA 62368-1 compliant Applicable marks: CE, TÜV-GS, C-UL-US, RCM |
| Safety | Emission: Class A compliant according CISPR 32, FCC part 15 and ICES-003 Immunity: CISPR 35 compliant | Emission: Class A compliant according CISPR 32, FCC part 15 and ICES-003 Immunity: CISPR 35 compliant |
| EMCEnvironmental | WEEE, RoHS directive 2011/65/EU, REACH, CE | WEEE, RoHS directive 2011/65/EU, REACH, CE |
- Base unit requires 4 printheads, adding optional white module requires and additional print head for a total of 5 printheads
- Installation, Training, ink and freight will be billed separate.
**Optional module
**** White ink is an optional module
