Geo Knight 931 Triton 54" x 60" Manual Single Station Large Format Heat Press

SHIP FREIGHT*

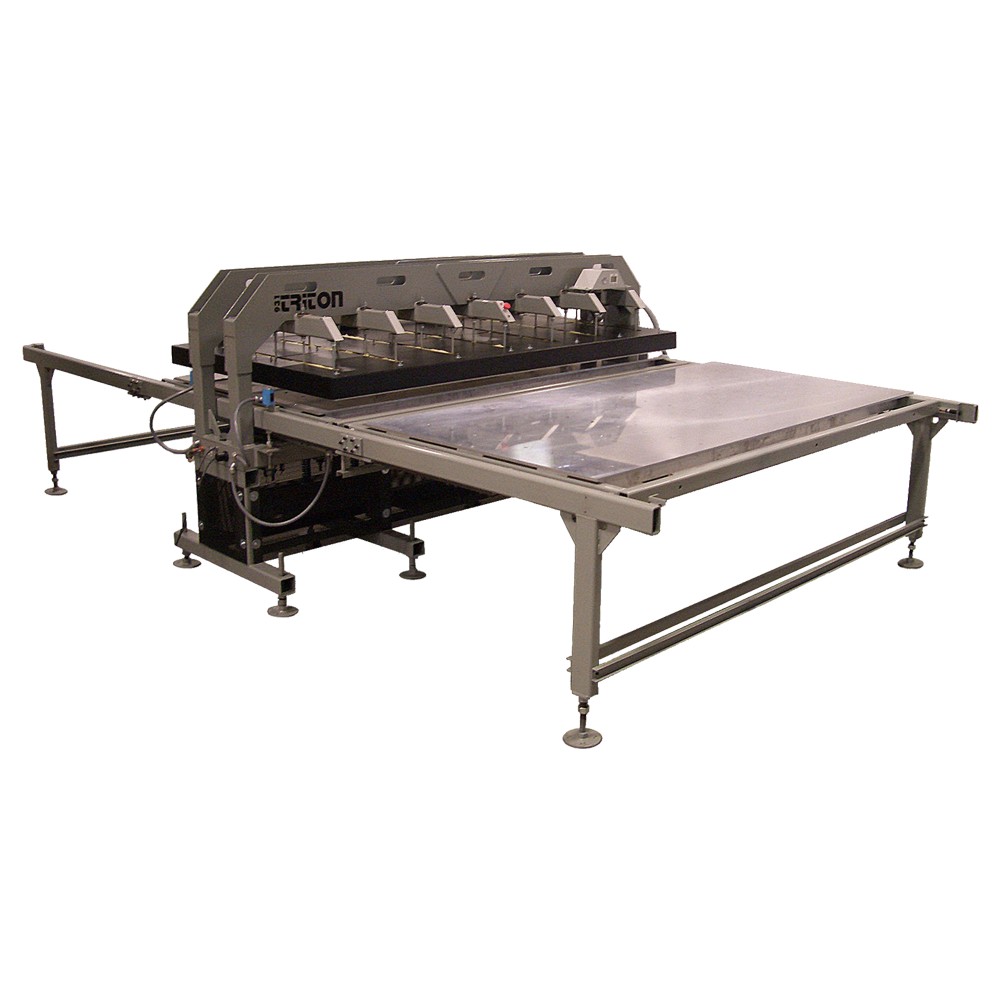

The 931 TRITON is a large format pneumatic heat transfer, press built for pressing a wide variety of materials. It is geared, towards high-production pressing of multiple piece goods as, well as 4’ x 8’ sheet materials.

The 931 TRITON answers the demand for a more stable, solid work base along with the capability of pressing transfers, in an oversized, large-area environment. Typical applications, include heat transfer printing onto fabrics such as banners &, garments, thicker materials such as carpets & mats, rigid goods, like tile & ceramic, as well as wood, sheet metal, plastics, polyester coated synthetics and a vast range of other substrates. Typical processes used are sublimation printing, hot splits, foiling, embossing, laminating, hot-stamping, heat sealing and, other applications requiring a massive size heat transfer press.

*PLEASE CALL FOR FREIGHT QUOTE*

FEATURES

• Digital integrated temperature and time control
• Available in 240V 3-Phase or 480V 3-Phase Power
• Available in Single shuttle or Dual loading table format
• Multi Air Bag Pressure design for Self Leveling of pressure
• Precision PLC Motor Controlled Automatic Indexing of Tables
• Uniform Lift / Parallel Platen Action & Adjustable Applied Force
• Productive Foot Pedal Operation & Emergency Release Safety Circuit
• Electronic Photo Eye Safety Sensor Light Curtain Around Heat Platen
• 2" Thick Solid Mirror Surface Ground Aluminum Heater Platen
• Oversized heat platens ranging up to 8ft x 12ft available upon request
