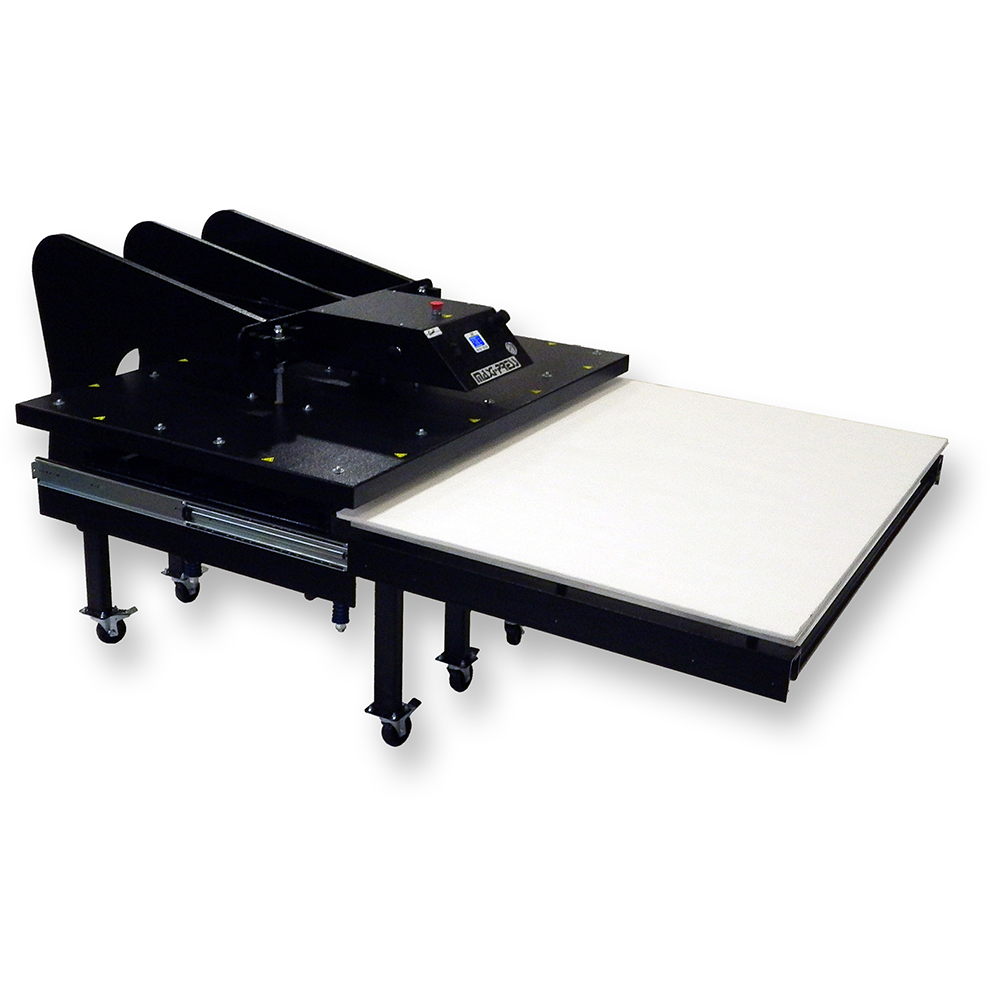

Geo Knight MAXI Press Air Automatic Large Format Heat Press
Geo Knight MAXI Press Air Automatic Large Format Heat Press
Couldn't load pickup availability
SHIP FREIGHT.*
The Geo Knight MAXI PRESS AIR is the next step up from the Manual version. This automatic press provides massive amounts of pressure due to its dual air-bag, 10-ton/20,000 lbs max force pneumatic pressing system. The heavy steel triple reinforced welded C-Frame design is built to withstand a lifetime of intense pressing and automatic operation. It also allows for full draping of materials over the front, left and right sides of the press, without, hindrance. The electronic digital temperature control maintains even heat across the entire surface of the heater. In addition, the timer automatically starts when the press is activated and automatically releases the press when elapsed. For a large format heavy pressure automatic press that is one step below the larger industrial 931 Triton machines, the MAXI PRESS AIR is the solution.
*This product is available for commercial delivery only and a forklift is required*
FEATURES
- Available in Single shuttle (standard) or Dual loading table format (optional)
- SuperCoil-Microwinding™ heater technology
- Ultra thick heater block assembly
- Solid steel pressure bars
- Heavy steel frame structures
- 20,000 lbs force, 10-ton air bag lift mechanism
- Self leveling pressure system
- Solid lower platen base
- Solid loading bed with ultra thick Nomex padding
- Dual button easy-activate safety circuit
- Heavy duty locking casters for easy movability and solid foundation support
- Automatic press, release, temp & timer controls
- Full one year warranty on the heating element, controls and the entire press
- Minimum Compressed Air Required: 20gal, 4cfm, 100psi, 3/8" line
- Electrical for 32x42: 208V-240V, 9000W, 1PH, 42A
32" x 42" Weight & Dimensions
- Crated: 72" x 48" x 68"
- Footprint: 44" width x 66" depth
- Weight: 1150 pounds
32" x 42" Twin Shuttle Weight & Dimensions
- Crated: 85" x 72" x 76"
- Footprint: 132" width x 56" depth
- Weight: 3452 pounds
44" x 64" Weight & Dimensions
- Crated: 85" x 73" x 62"
- Footprint: 66" width x 72" depth
- Weight: 1868 pounds
44" x 64" Twin Shuttle Weight & Dimensions
- Crated: 96" x 85" x 84"
- Footprint: 198" width x 75" depth
- Weight: 3986 pounds
